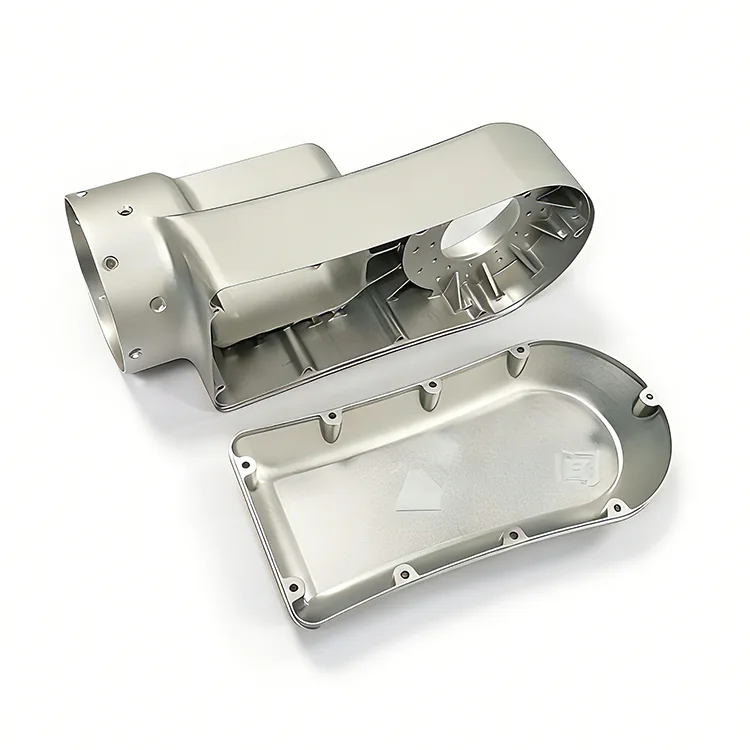

Lightweight Seven-Axis Robotic Arm Joint Component

Using advanced 5-axis CNC machining technology and high-strength lightweight materials (6061-T6 aluminum alloy, carbon fiber composite, and titanium alloy), our Lightweight seven-axis robotic arm joint component achieves optimal balance between weight reduction (60% lighter than standard 6-axis robotic joints) and structural integrity (15kg payload capacity). With ±0.001mm machining accuracy and high-performance lubrication system, our products ensure smooth, precise and reliable operation in high-cycle automation applications.

● 7-axis design with unlimited 360° rotation on wrist joint for maximum flexibility and reachability

● High-strength lightweight materials (6061-T6 aluminum, carbon fiber) with 60% weight reduction vs. traditional joints

● ±0.001mm machining precision with low-friction PTFE coating for smooth articulation

● 15kg maximum payload capacity with 10,000,000+ cycle service life for high-volume automation

● Compliant with ISO 9001:2015, RoHS, and CE standards for global industrial automation applications

Key Features & Core Advantages

7-Axis Flexible Rotation

Our Lightweight seven-axis robotic arm joint components feature unlimited 360° rotation on the wrist axis and ±180° on shoulder/elbow axes, providing exceptional reachability and flexibility for complex automation tasks in tight spaces (working envelope expansion of 40% vs. 6-axis robots).

Lightweight High-Strength Materials

Precision machined from 6061-T6 aluminum alloy (yield strength 276 MPa), carbon fiber composite (strength-to-weight ratio 3x steel) and Grade 5 titanium alloy for critical load-bearing components, achieving 60% weight reduction without compromising structural integrity.

Low-Friction Precision Design

Advanced PTFE coating (coefficient of friction 0.04) on all moving surfaces with high-performance lithium-based grease lubrication system, ensuring smooth operation with minimal backlash (<0.005°) and maintenance-free operation for 20,000 hours.

Technical Specifications

Industrial Automation Applications

Cobot Applications

Collaborative Robotics

● Human-robot collaboration with lightweight design (total arm weight <25kg)

● Safe operation with collision detection enabled by low inertia design

● Flexible assembly, pick-and-place, and machine tending tasks

● Easy programming and teaching with 7-axis intuitive movement

Automotive Industry

Automotive Manufacturing

● Complex welding, painting, and assembly of automotive components

● High-precision positioning (±0.005mm) for engine and transmission assembly

● 24/7 operation with 10,000,000+ cycle durability

● Compact design for operation in automotive production line tight spaces

Electronics & Medical

Electronics & Medical Devices

● Micro-assembly of electronics components with ±0.001mm precision

● Cleanroom-compatible (ISO Class 7) medical device manufacturing

● Delicate handling of fragile components with 7-axis fine movement control

● ESD-safe design (≤10⁹Ω) for sensitive electronics manufacturing
