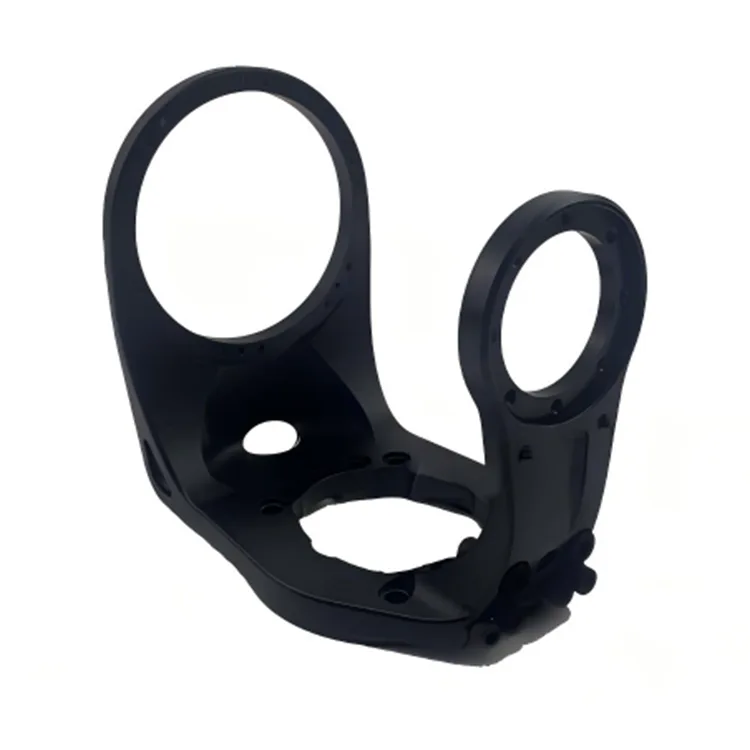

Humanoid Robot Leg U-shaped Frame
Suzhou Deaote is a leading manufacturer of Humanoid robot leg U-shaped frame, engineered to serve as the critical load-bearing and articulation core of humanoid robot lower limb systems. Our U-frames are specifically designed to mimic human leg biomechanics, balancing extreme structural strength with lightweight performance for natural, stable movement.
Utilizing advanced 5-axis CNC machining technology and aerospace-grade materials (7075-T6 aluminum alloy, Ti-6Al-4V titanium alloy, carbon fiber reinforced composites), our Humanoid robot leg U-shaped frame achieves micron-level dimensional accuracy (±0.002mm) and exceptional fatigue resistance (1,000,000+ flexion cycles). We offer fully customized solutions tailored to humanoid robot design requirements, including custom U-frame geometries, integrated mounting points, and surface treatments for enhanced wear resistance.
● Optimized for Humanoid robot leg U-shaped frame kinematics (knee/ankle joint integration, 150° articulation range)
● Aerospace-grade material selection (7075-T6 aluminum, Ti-6Al-4V titanium, CFRP composites)
● Engineered for dynamic load handling (80kg max payload, 5g impact resistance)
● Surface treatments (hard anodizing, PTFE coating) for low-friction articulation
● Compliant with robotics industry standards (ISO 10218, RoHS, REACH)
Core CNC Machining Capabilities for Humanoid Robot Leg U-Frame
|
Machining Precision |
±0.002mm |
|
Monthly Capacity |
25,000+ PCS |
|
Max Payload |
80kg per U-Frame |
|
Lead Time |
7-20 Working Days |
5-Axis Precision Machining
Equipped with 25+ sets of high-precision 5-axis CNC machining centers, we produce complex Humanoid robot leg U-shaped frame with intricate internal geometries and integrated articulation points, ensuring perfect fit and natural movement of robot leg joints.
Lightweight High-Strength Materials
Specialized in machining aerospace-grade materials for Humanoid robot leg U-shaped frame, including 7075-T6 aluminum alloy (40% lighter than steel), Ti-6Al-4V titanium alloy (excellent corrosion resistance), and carbon fiber composites for ultra-lightweight designs.
Biomechanical Performance Testing
Comprehensive quality verification including CMM dimensional inspection, fatigue testing (1M+ cycles), impact resistance testing (5g), and kinematic simulation to ensure humanoid robot leg U-frames meet strict performance standards for natural, stable movement.
Technical Specifications for Humanoid Robot Leg U-Frame
|
U-Frame Type |
Materials & Machining Specs |
Performance Standards |
|
Standard Lightweight U-Frame |
7075-T6 Aluminum Alloy, ±0.002mm tolerance, Ra≤0.4μm surface finish, Hard Anodizing (50μm) |
60kg Payload, 1,000,000+ Flex Cycles, -20°C to +80°C Operating Temp, 3g Impact Resistance |
|
High-Strength U-Frame |
Ti-6Al-4V Titanium Alloy, 5-axis CNC, Electropolished Surface, ±0.0015mm tolerance |
80kg Payload, 1,500,000+ Flex Cycles, -40°C to +100°C Operating Temp, 5g Impact Resistance |
|
Ultra-Lightweight U-Frame |
Carbon Fiber Composite + Aluminum Core, ±0.003mm tolerance, PTFE Coating |
40kg Payload, 50% Weight Reduction vs Aluminum, UV Resistant, 2g Impact Resistance |
|
Custom Geometry U-Frame |
Custom Material Selection, 5-axis CNC, Custom Surface Treatment, CAD/CAM Optimization |
Tailored Payload (20-100kg), Custom Articulation Range (90°-180°), OEM/ODM Supported |
|
Batch Production |
MOQ 30 PCS, 25,000 PCS/month max, 100% Automated QC Inspection |
ISO 9001:2015, ISO 10218, RoHS, REACH Certified, 0.01% Defect Rate |
Application Scenarios for Humanoid Robot Leg U-Frame
Service Humanoid Robots
Domestic service robots, hospitality robots, healthcare assistant robot leg U-frames
Industrial Humanoid Robots
Factory automation robots, warehouse logistics robots, heavy-duty industrial robot leg components
R&D Humanoid Robots
Academic research robots, biomechanical testing robots, AI-driven humanoid robot prototypes
Special Purpose Robots
Search & rescue robots, disaster response robots, hazardous environment humanoid robot legs
