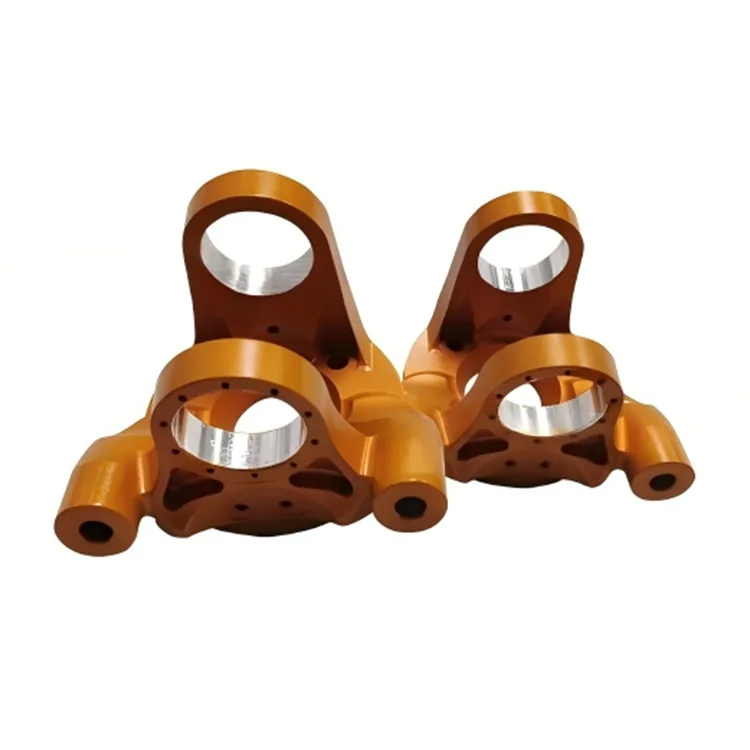

Humanoid Upper Limb Joint U-Shaped Frame
Suzhou Deaote Precision Mould Co., Ltd., located in Wuzhong District of Suzhou City, Jiangsu Province, is a leading manufacturer of Humanoid Upper Limb Joint U-Shaped Frame As the critical structural core of humanoid robot arm, shoulder, and elbow joints, our U-frame components enable smooth 360° rotational movement while maintaining exceptional torque resistance and positional accuracy across all types of humanoid robotic upper limb systems.
Our Humanoid Upper Limb Joint U-Shaped Frames are engineered using advanced 5-axis CNC machining technology and premium aerospace-grade materials to deliver optimal strength-to-weight ratios (2.8g/cm³ density with 500MPa tensile strength). With micron-level machining accuracy (±0.001mm) and rigorous quality control processes, our U-frame components ensure consistent rotational performance, durability (3,000,000+ operational cycles), and seamless integration with humanoid robot upper limb assemblies. We offer fully customizable solutions including custom joint angles, integrated bearing seats, and specialized surface treatments to meet unique humanoid robot design requirements.
● Optimized for humanoid robot upper limb kinematics (0°-360° rotation range, 0.05mm positional accuracy)
● Premium material selection (7075-T6 aluminum, Ti-6Al-4V titanium, stainless steel 17-4 PH)
● Engineered for high torque handling (80N·m max torque, 10g impact resistance)
● Advanced surface treatments (hard anodizing, DLC coating, PTFE dry lubrication)
● Compliant with international robotics standards (ISO 10218-1, RoHS, REACH, CE)
Core CNC Machining Capabilities for Humanoid Robot Upper Limb Joint U-Frame
|
Machining Precision |
±0.001mm |
|
Monthly Capacity |
40,000+ PCS |
|
Max Torque Handling |
80N·m per U-Frame |
|
Lead Time |
4-15 Working Days |
5-Axis Precision Machining
Equipped with 30+ sets of high-precision 5-axis CNC machining centers (DMG Mori, Haas), we produce complex humanoid robot upper limb joint U-frames with precision bearing pockets (H7 tolerance), integrated pivot holes, and contoured inner surfaces that ensure frictionless 360° rotation and perfect alignment of robot arm joints.
High-Strength Lightweight Materials
Specialized in machining aerospace-grade materials for humanoid robot upper limb joint U-frames, including 7075-T6 aluminum alloy (40% lighter than steel with 95% strength), Ti-6Al-4V titanium alloy (superior fatigue resistance for continuous motion), and 17-4 PH stainless steel (corrosion-proof with 1000HV hardness after heat treatment).
Comprehensive Quality Verification
Complete quality control process including CMM dimensional inspection (0.0005mm accuracy), torque testing (0-80N·m), rotational friction testing (≤0.5N resistance), fatigue testing (3M+ cycles), and impact resistance testing (10g) to ensure humanoid robot upper limb joint U-frames meet the most stringent performance standards.
Technical Specifications for Humanoid Robot Upper Limb Joint U-Frame
|
U-Frame Type |
Materials & Machining Specs |
Performance Standards |
|
Standard Shoulder U-Frame |
7075-T6 Aluminum Alloy, ±0.001mm tolerance, Ra≤0.1μm surface finish, Hard Anodizing (80μm) |
60N·m Torque Capacity, 3,000,000+ Operational Cycles, -40°C to +100°C Temp Range, 8g Impact Resistance |
|
Heavy-Duty Elbow U-Frame |
Ti-6Al-4V Titanium Alloy, 5-axis CNC, DLC Coating, ±0.0008mm tolerance |
80N·m Torque Capacity, 4,000,000+ Operational Cycles, -50°C to +120°C Temp Range, 10g Impact Resistance |
|
Corrosion-Resistant Wrist U-Frame |
17-4 PH Stainless Steel, Passivation + PTFE Coating, ±0.0015mm tolerance |
50N·m Torque Capacity, 2,500,000+ Operational Cycles, IP68 Protection, 7g Impact Resistance |
|
Custom Engineered U-Frame |
Custom Material Selection, 5-axis CNC, Custom Surface Treatment, CAD/CAM Optimization |
Tailored Torque (20-100N·m), Custom Rotation Range (90°-360°), OEM/ODM Fully Supported |
|
Mass Production |
MOQ 50 PCS, 40,000 PCS/month max, 100% Automated QC Inspection |
ISO 9001:2015, ISO 10218-1, RoHS, REACH Certified, 0.005% Defect Rate |
Application Scenarios for Humanoid Robot Upper Limb Joint U-Frame
Service Humanoid Robots
Domestic assistance robots, healthcare robots, hospitality & retail robot upper limb joint systems
Industrial Humanoid Robots
Manufacturing automation robots, warehouse logistics robots, heavy-duty industrial robot arm joints
R&D Humanoid Robots
Academic research robots, biomechanical testing platforms, AI-driven robot prototypes
Special Purpose Robots
Search & rescue robots, disaster response robots, underwater/extreme environment robot arm joints
