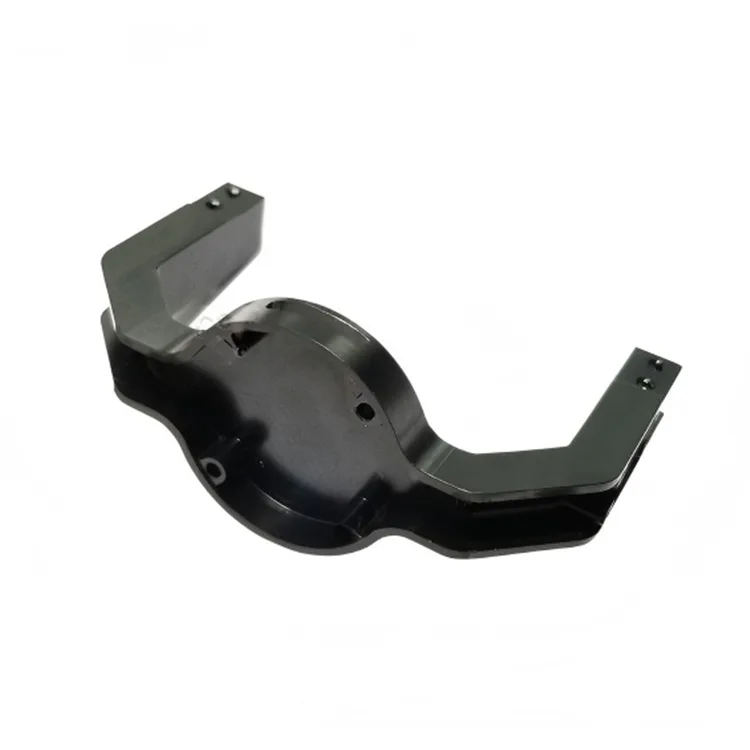

Power Inspection Drone Gimbal
Suzhou Deaote Precision Mould Co., Ltd., located in Wuzhong District of Suzhou City, Jiangsu Province, is a leading manufacturer of high-precision CNC machined PTZ (pan-tilt-zoom) units specifically engineered for power inspection drones. With over 18 years of expertise in precision CNC machining and aerospace-grade component manufacturing, we specialize in Power Inspection Drone Gimbal that deliver exceptional stability, anti-vibration performance, and durability for the harsh operating conditions of electrical utility inspection missions.
Our Power Inspection Drone Gimbal is manufactured using premium-grade aluminum alloys (6061-T6, 7075-T6) and titanium alloys with tight tolerances of ±0.005mm, ensuring precise camera positioning and stable imagery capture during high-altitude power line inspections. Designed to withstand extreme temperatures (-40°C to +85°C), high vibration, and harsh weather conditions, our PTZ units feature IP67 waterproof/dustproof protection and corrosion-resistant coatings for reliable performance in all environmental conditions.
● Custom Power Inspection Drone Gimbals engineered to your exact drone model and camera specifications
● ±0.005mm machining tolerance for ultra-precise camera positioning and stable imagery capture
● Anti-vibration design with integrated damping systems for blur-free power line inspection imagery
● IP67 waterproof/dustproof rating and corrosion-resistant coatings for harsh outdoor environments
● ISO 9001:2015 certified CNC manufacturing with full quality control and traceability
Key Features & Core Advantages
High-Precision CNC Machining
Our Power Inspection Drone Gimbals are manufactured using 5-axis CNC machining centers with ±0.005mm precision, ensuring perfect alignment of all mechanical components. The aerospace-grade aluminum alloy (7075-T6) construction provides exceptional strength-to-weight ratio, while the precision-machined bearing seats and pivot points ensure smooth pan/tilt movement with minimal backlash for stable camera positioning during power line inspections.
Advanced Anti-Vibration System
Integrated with multi-layer damping systems and vibration isolation mounts, our PTZ units effectively reduce drone motor vibration transmission by 95%, ensuring blur-free high-resolution imagery capture during power line inspections. The proprietary anti-vibration design maintains camera stability even during high-speed drone flight (up to 70km/h) and in turbulent wind conditions common in power utility environments.
Ruggedized Environmental Protection
Engineered for the harsh conditions of outdoor power inspection missions, our PTZ units feature IP67 waterproof/dustproof protection, salt spray corrosion resistance (1000+ hours), and UV-stabilized coatings. The sealed design prevents water, dust, and debris ingress during rain, snow, and dusty conditions, while the temperature-resistant components ensure reliable operation in extreme climate zones.
Technical Specifications
|
PTZ Model |
Compatibility |
Key Specifications |
|
DT-D180 (Lightweight) |
Consumer/Commercial Drones (1-3kg) |
180g weight, ±0.01mm tolerance, IP67, -20°C to +70°C, 2-axis stabilization |
|
DT-D350 (Industrial) |
Industrial Inspection Drones (3-8kg) |
350g weight, ±0.005mm tolerance, IP67, -40°C to +85°C, 3-axis stabilization |
|
DT-D500 (Heavy-Duty) |
Heavy-Lift Inspection Drones (8-15kg) |
500g weight, ±0.005mm tolerance, IP68, -40°C to +85°C, 3-axis stabilization |
|
DT-D-Custom (Custom) |
Custom Drone Platforms |
Tailored weight/tolerance, custom temperature range, specialized stabilization |
Material & Manufacturing Specifications
● Primary Materials: 6061-T6 / 7075-T6 Aluminum Alloy / Grade 5 Titanium Alloy
● CNC Machining: 5-axis CNC milling centers with ±0.005mm positioning accuracy
● Surface Treatment: Hard anodization (10-15µm) / Electroless nickel plating
● Fasteners: Stainless steel (316) or titanium alloy for corrosion resistance
● Assembly: Precision torque-controlled assembly with Loctite thread locking
Performance & Operational Specifications
● Pan/Tilt Range: 360° continuous pan, -90° to +30° tilt (customizable)
● Max Angular Velocity: 120°/s pan, 90°/s tilt for rapid target acquisition
● Vibration Isolation: 95% vibration reduction (5-2000Hz frequency range)
● Payload Capacity: Up to 2.5kg camera/ sensor payload (model dependent)
● MTBF (Mean Time Between Failures): 5,000+ operational hours
Power Inspection Drone PTZ Applications
High-Voltage Power Lines
HV Power Line Inspection
● Inspection of 110kV-1000kV transmission lines and tower components
● Detection of conductor damage, insulator defects, and hardware corrosion
● Thermal imaging inspection of electrical connections and equipment
● Vegetation encroachment monitoring and clearance verification
Substation Inspection
Substation & Transformer Inspection
● Close-up inspection of circuit breakers, transformers, and switchgear
● Detection of oil leaks, thermal hotspots, and equipment degradation
● Inspection of hard-to-reach areas without power shutdowns
● Documentation of maintenance needs and asset condition assessment
Distribution Networks
Distribution Network Inspection
● Inspection of medium-voltage (10kV-35kV) distribution lines and poles
● Damage assessment after storms, earthquakes, and other natural disasters
● Inspection of street lighting and public utility power infrastructure
● Regular preventive maintenance and asset management documentation
