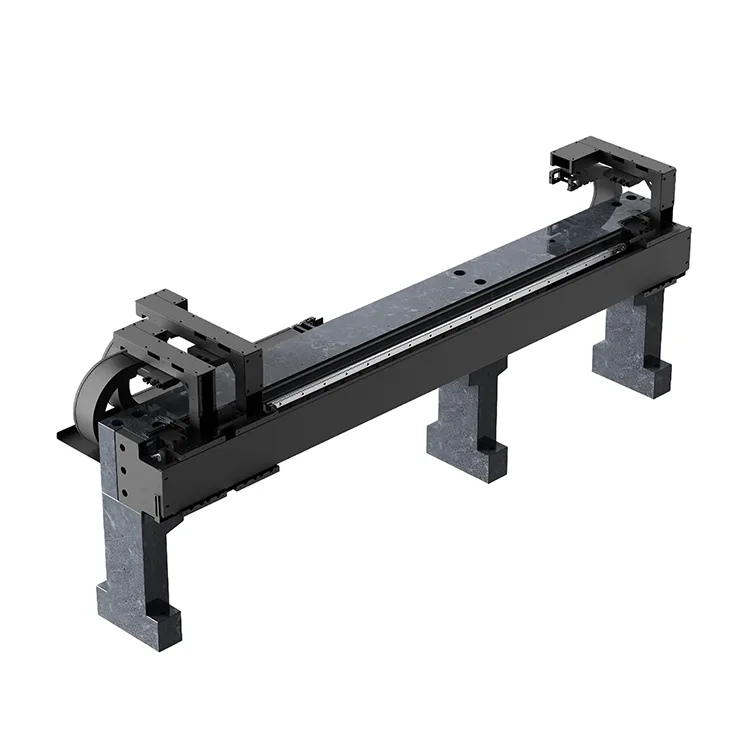

Three Motion Sub Module

Designed to replace Three motion sub module in compact production lines—including semiconductor wafer processing, LCD/OLED panel inspection, and high-speed electronic component assembly—this module integrates three independent linear motor movers with high-resolution encoders to deliver sub-micron precision for each mover while enabling flexible synchronous or asynchronous motion control.

Built on Deaote's 15+ years of expertise in precision motion component manufacturing, our triple-mover module eliminates the need for multiple parallel linear stages, reducing equipment footprint by up to 40% and simplifying system integration. Each mover features independent servo control, zero backlash direct drive, and adjustable speed/acceleration (0-3m/s), making it ideal for high-throughput multi-step processes such as 300mm wafer handling (loading → processing → unloading), LCD panel multi-position inspection, and automotive component assembly lines.

Manufactured under ISO 9001:2015 quality standards, the triple-mover module features IP65 dust/water resistance, anti-interference electromagnetic shielding, and a sealed cable management system to ensure reliable performance in harsh industrial environments. Compatible with industry-standard motion controllers (Siemens, Beckhoff, Yaskawa) and communication protocols (EtherCAT, PROFINET), it enables seamless integration into multi-station automated production lines, improving overall equipment efficiency (OEE) by up to 50% compared to traditional multi-module setups.

Product Series

DT-LM-TM1 Series (Precision Focus)

3 independent movers with ±1μm repeat accuracy per mover, 1-2m travel range, 2m/s max speed. Ideal for semiconductor wafer processing, micro-electronic component assembly, precision inspection systems.

DT-LM-TM2 Series (High-Speed Focus)

3 high-speed movers with 3m/s max speed, ±1.5μm repeat accuracy, 1-4m travel range. Suited for high-throughput LCD/OLED panel inspection, automated sorting systems, battery cell assembly.

DT-LM-TM-HD Series (Heavy-Duty)

3 heavy-duty movers with 150kg load capacity per mover, ±2μm repeat accuracy, 1-3m travel range. Designed for automotive component assembly, heavy material handling, large-format 3D printing.

Core Advantages

1. Three Independent Movers with Precision Control

Each of the Three motion sub module features independent servo control and high-resolution linear encoders (1nm resolution), delivering ±1μm repeat positioning accuracy per mover—ensuring consistent precision across all multi-station processes. Movers can operate without interference, even at maximum travel range (1-4m), eliminating position drift common in shared-rail motion systems.

2. Flexible Synchronous/Asynchronous Motion

Supports both synchronous motion (all 3 movers moving at the same speed/position for batch processing) and asynchronous motion (each mover operating at independent speeds/positions for multi-step processes). This flexibility reduces equipment complexity and enables rapid reconfiguration for different production tasks—critical for flexible manufacturing systems (FMS).

3. Space-Saving & Cost-Efficient Design

Integrating Three motion sub module on a single guide rail reduces equipment footprint by 40% compared to three separate linear modules, optimizing factory floor space utilization. Fewer components (single frame, shared power supply) lower total system cost by 30% while simplifying maintenance and reducing downtime.

4. High Speed & High Throughput

Linear motor direct-drive design enables up to 3m/s max speed per mover with rapid acceleration (2g), reducing cycle times for multi-station processes by up to 50% compared to ball screw-driven multi-module setups. Zero backlash and zero wear ensure consistent high-speed performance over millions of cycles.

5. Customizable Motion Profiles

Full customization of travel range (1-4m), mover load capacity (50-150kg per mover), speed/acceleration parameters, and motion profiles (trapezoidal, S-curve) to match your multi-station automation requirements. Modular design allows easy addition/removal of movers for future production line upgrades.

6. Industrial-Grade Reliability for Continuous Operation

IP65 protection grade, operating temperature range (-10℃ to 80℃), and anti-corrosion hard anodization ensure reliable performance in dusty, humid, or high-temperature industrial environments. MTBF ≥30,000 hours under continuous operation, reducing total cost of ownership (TCO) by 25% over 5 years compared to traditional multi-module systems.

Technical Specifications

Application Scenarios

Deaote's Three motion sub modules are engineered for high-throughput multi-station automation across global high-growth sectors:

● Semiconductor & Electronics: 300mm wafer loading/processing/unloading, microchip packaging, PCB multi-position drilling/testing

● Display Manufacturing: 10.5G LCD/OLED panel multi-point inspection, touch screen assembly, backlight module positioning

● Automotive & Aerospace: Automotive component multi-step assembly, aerospace part precision machining, battery cell stacking

● Medical & Pharmaceutical: Medical device multi-station assembly, drug packaging lines, laboratory automation systems

● Logistics & Sorting: High-speed parcel sorting, automated warehouse picking, electronic component sorting systems
