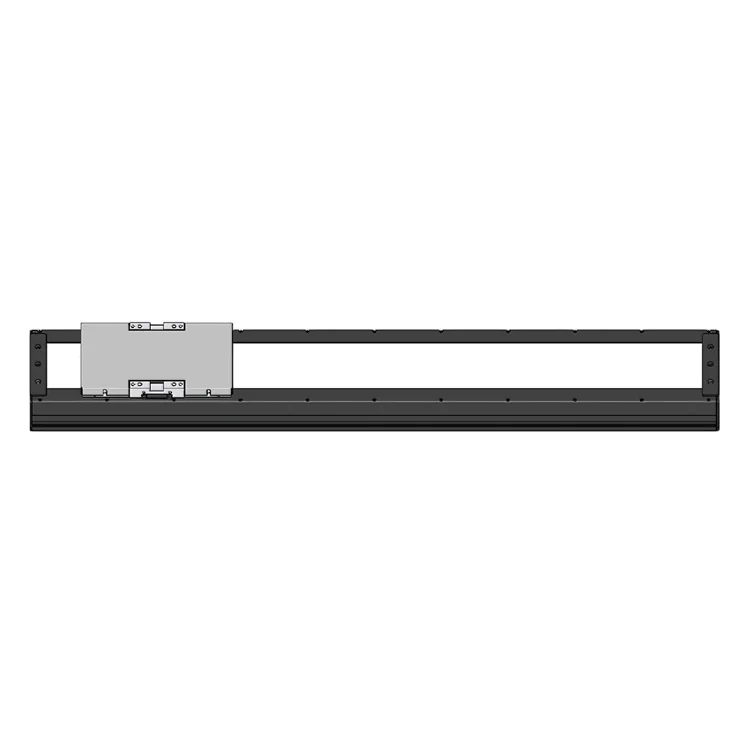

Fully Enclosed Linear Motor Module

Built on Deaote's 15+ years of expertise in precision motion component manufacturing, our Fully enclosed linear motor module eliminates the common failure points of open-type modules (contamination-induced wear, encoder damage, guide rail corrosion) in high-debris environments such as CNC machining centers, metal stamping lines, and food processing equipment. The hermetic sealing design ensures consistent performance in temperatures ranging from -20℃ to 85℃ and humidity up to 95% (non-condensing), making it ideal for both indoor factory floors and semi-outdoor industrial settings.

Manufactured under ISO 9001:2015 quality standards, the Fully enclosed linear motor module features a self-lubricating guide rail system, anti-corrosion hard anodized enclosure, and reinforced cable gland design to ensure long-term reliability. Compatible with industry-standard motion controllers (Siemens, Beckhoff, Mitsubishi) and communication protocols (EtherCAT, Modbus), it seamlessly integrates into harsh-environment automation systems, reducing unplanned downtime by up to 60% compared to open-type linear motor modules.

Product Series

DT-LM-FE1 Series (Precision Focus)

IP67 protection, ±1μm repeat accuracy, 1-2m travel range, 2m/s max speed. Ideal for precision machining centers, electronic component assembly in dusty environments.

DT-LM-FE2 Series (High-Speed Focus)

IP67 protection, ±1.5μm repeat accuracy, 1-5m travel range, 3m/s max speed. Suited for high-throughput automotive manufacturing lines, packaging equipment with liquid exposure.

DT-LM-FE-Chem Series (Chemical Resistant)

IP68 protection, chemical-resistant PTFE coating, ±2μm repeat accuracy, 1-3m travel range. Designed for chemical processing, food/beverage production, pharmaceutical manufacturing.

Core Advantages

1. IP67/IP68 Full Enclosure for Harsh Environment Protection

The fully sealed aluminum alloy enclosure with double-layer labyrinth seals and polyurethane scrapers provides IP67 (dust-tight, water-resistant up to 1m depth) or IP68 (permanent water immersion) protection. This blocks 100% of dust particles (≥0.1μm), metal chips, coolant, and chemical splashes from entering the internal motion components, eliminating contamination-related failures in machining and industrial environments.

2. Sub-Micron Precision Maintained in Contaminated Environments

Integrated high-resolution linear encoders (1nm resolution) with sealed reading heads deliver ±1μm repeat positioning accuracy—even in high-debris environments. The non-contact linear motor drive eliminates mechanical wear, ensuring consistent precision over 100,000+ operating cycles without calibration or adjustment.

3. Low Maintenance & Long Service Life

Self-lubricating linear guide rails (PTFE coating) and sealed grease reservoirs eliminate the need for frequent lubrication (maintenance interval extended to 12 months vs. 1 month for open-type modules). The anti-corrosion enclosure and internal components deliver a service life of ≥5 years in harsh environments, reducing maintenance costs by 70%.

4. High Speed & High Load Capacity

Despite the fully enclosed design, optimized airflow channels and heat dissipation fins maintain high-speed operation (up to 3m/s) and high load capacity (up to 300kg). The rigid enclosure also enhances structural stability, minimizing deflection under dynamic loads (up to 2g acceleration) for heavy-duty industrial applications.

5. Customizable for Specific Harsh Environments

Full customization of enclosure material (stainless steel option for food/pharma), coating (PTFE chemical resistance, anti-static), travel range (1-5m), and protection grade (IP67/IP68). Optional features include heated enclosures (for low-temperature environments) and explosion-proof design (for hazardous areas).

6. Easy Integration & Reduced Downtime

Drop-in replacement design compatible with standard open-type linear module mounting dimensions, enabling seamless retrofitting into existing automation systems. Quick-release enclosure covers simplify inspection and maintenance (≤30 minutes for routine checks), reducing unplanned downtime by 60% compared to conventional sealed modules.

Technical Specifications

Application Scenarios

Deaote's Fully enclosed linear motor module is engineered for harsh-environment automation across global industrial sectors:

● CNC Machining & Metal Fabrication: CNC milling/turning centers, metal stamping lines, laser cutting machines (chip/coolant exposure)

● Automotive Manufacturing: Body-in-white assembly, paint shop automation, powertrain component machining (dust/chemical exposure)

● Food & Beverage Production: Packaging lines, filling equipment, food processing machinery (water/cleaning chemical exposure)

● Chemical & Pharmaceutical: Chemical processing equipment, pharmaceutical production lines, clean-in-place (CIP) systems (corrosive chemical exposure)

● Heavy Industry & Logistics: Mining equipment automation, port cargo handling, construction machinery control (dust/moisture exposure)

About Deaote

Our Fully enclosed linear motor module is developed in our dedicated harsh-environment motion R&D lab, leveraging advanced sealing technology, corrosion-resistant materials, and precision calibration to achieve reliable performance in dust, liquid, and chemical-laden environments. We provide end-to-end customization services—from enclosure design and material selection to on-site installation and global technical support—ensuring our solutions meet the unique requirements of harsh-environment automation systems.

Committed to "Reliability in Harsh Environments, Precision in Motion", Deaote invests 18% of annual revenue in R&D to develop next-generation sealed motion solutions. Our ISO 9001:2015 certified production facility and global service network ensure fast response times (≤48 hours) and local technical support, making us a trusted partner for manufacturers of harsh-environment automated production lines worldwide.
