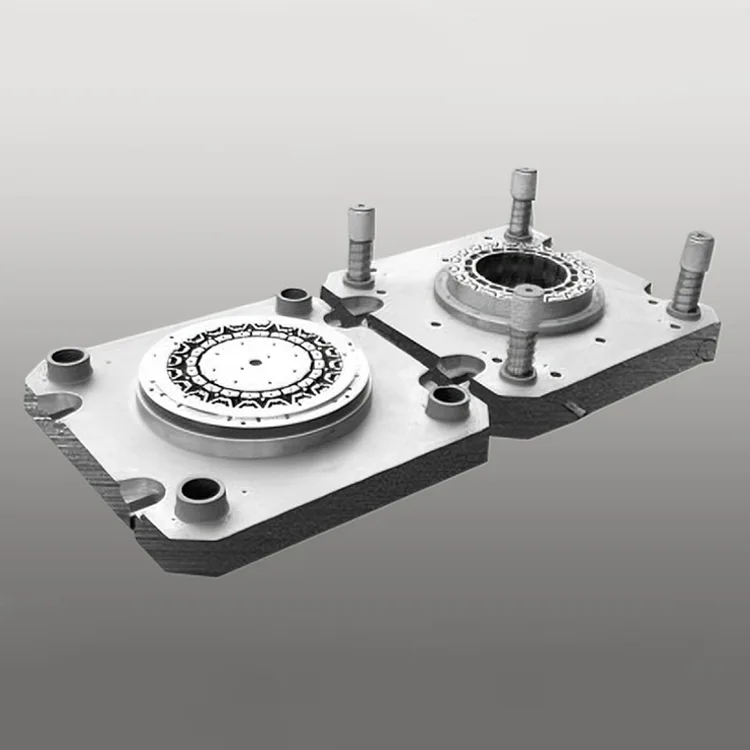

500mm Outer Diameter Full Compound Die for NEV Stator and Rotor

The core power components of new energy vehicle (BEV/PHEV) traction motors (50-200kW). 500mm Outer Diameter Full Compound Die for NEV Stator and Rotor is designed to address the strict dimensional and structural requirements of NEV motor cores with 500mm outer diameter, this full compound die integrates blanking, punching, notching, and lamination processes in a single stamping cycle, eliminating multi-step processing and ensuring absolute consistency of core geometry critical for NEV motor power density (≥3.5kW/kg) and torque output stability.

Product Series

DT-FCD-NEV1 Series (Passenger NEV Traction Motor)

±0.005mm accuracy, 780,000 strokes life, 50-120kW motor cores (500mm OD). Ideal for BEV/PHEV passenger car traction motor mass production.

DT-FCD-NEV2 Series (Commercial NEV Traction Motor)

±0.006mm accuracy, 720,000 strokes life, 120-200kW motor cores (500mm OD). Suited for electric bus/truck traction motor production.

DT-FCD-NEV-Custom Series (OEM NEV Motor)

Tailored dimensional accuracy (±0.004-0.007mm), custom process integration, compatible with silicon steel (27Q130/35W250). Designed for brand-specific NEV motor production.

Core Advantages

1. Full Compound Design for Integrated One-Step Stamping

Integrated blanking, punching, notching, and lamination processes in a single stamping cycle eliminate 3-4 traditional processing steps for 500mm Outer Diameter Full Compound Die for NEV Stator and Rotor. This one-step solution reduces production lead time by 40% and core assembly error by 80%, ensuring perfect alignment of stator/rotor laminations (parallelism ≤0.008mm) critical for NEV motor efficiency.

2. 500mm OD High-Rigidity Frame for Zero Deformation

Reinforced die frame made of S50C high-strength steel with stress-relief heat treatment (HV ≥220) and precision guide pillars (runout ≤0.002mm) ensures zero deformation even under 350 Ton stamping force. The symmetric structural design minimizes vibration during high-speed stamping, maintaining dimensional accuracy of ±0.005mm for 500mm large-size cores—critical for NEV motor air gap uniformity (≤0.01mm).

3. Premium Coated Tool Steel for Extended Service Life

Core punch components made of SKH-51 (high-speed steel) and ASP23 (powder metallurgy steel) with TiAlN coating (hardness ≥68 HRC) deliver 780,000+ stamping strokes—2.1x longer than standard large-size dies (370,000 strokes). The TiAlN coating provides high-temperature resistance (up to 500°C) and wear resistance, extending maintenance intervals to 180,000 strokes (vs. 70,000 for conventional large dies).

4. NEV Motor-Grade Precision for Power Density

7-axis CNC machining with ±0.0008mm positioning accuracy and in-die laser gauging systems ensure component dimensional tolerance of ±0.005mm—critical for NEV motor power density (≥3.5kW/kg) and energy conversion efficiency (≥96%). Consistent precision eliminates post-stamping machining, improving production yield to 99.7% for 500mm large-size cores.

5. Silicon Steel Optimization for NEV Energy Efficiency

Specialized punch edge design with micro-radius (R0.015mm) minimizes silicon steel (27Q130/35W250) material stress and edge burrs (≤0.008mm), preserving the magnetic properties of the steel and improving NEV motor energy efficiency by 5-7%. Compatible with high-grade non-grain-oriented (NGO) silicon steel, meeting global NEV motor efficiency standards (EU WLTP, US EPA).

6. Modular Customization for NEV Motor Diversity

Full customization of stamping processes (blanking/punching/notching/lamination), material compatibility (0.35-0.5mm silicon steel), surface finish (Ra ≤0.4μm), and dimensional tolerance (±0.004-0.007mm). Optional features include in-die stacking, insulation coating compatibility, and laser marking for traceability—meeting global NEV OEM requirements for traction motor core production.

Technical Specifications

±0.005mm Dimensional Accuracy780,000+ Strokes Service LifeFull Compound Integrated StampingHigh-Rigidity Die Frame (500mm OD)Custom for NEV Traction Motors

Application Scenarios

Deaote's 500mm Outer Diameter Full Compound Die for NEV Stator and Rotor is engineered for global NEV motor manufacturers across diverse sectors:

● Passenger NEVs: Mass production of 50-120kW stator/rotor core components (500mm OD) for BEV/PHEV passenger cars (sedan/SUV/hatchback)

● Commercial NEVs: Production of 120-200kW stator/rotor core components (500mm OD) for electric buses, trucks, and delivery vans

● Special NEVs: Custom stamping of core components for electric construction vehicles, agricultural NEVs, and marine electric vehicles

● OEM NEV Motor Manufacturing: Custom die solutions for global NEV motor OEMs (Tesla, BYD, Volkswagen, Toyota, Hyundai) for brand-specific core production
