10.5G LCD Detection and Repair

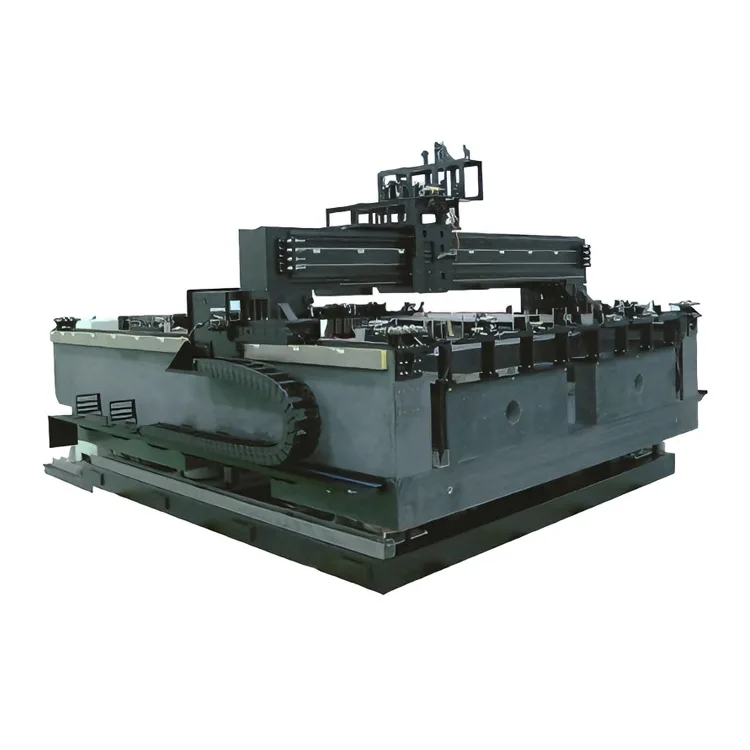

Built on Deaote's 15+ years of expertise in precision mould and large-scale motion component manufacturing, the dual-drive design eliminates single-axis torque deformation and ensures uniform motion across the entire 10.5G LCD detection and repair surface (3.37m × 2.94m). The platform features a thermally stabilized granite base and active anti-vibration system, maintaining positioning accuracy (±2μm repeatability) even during continuous 24/7 operation in LCD cleanroom environments (Class 1000). Compatible with automated optical inspection (AOI) systems, laser repair tools, and vision-guided repair robots, it enables seamless integration into 10.5G LCD production lines to improve panel yield and reduce scrap rates.

Optimized for both inspection and repair workflows, the 10.5G LCD detection and repair supports customizable travel ranges (X-axis: up to 4000mm, Y-axis: up to 3500mm) and high dynamic performance (max speed: 1.2m/s, acceleration: 0.8G) to meet the throughput requirements of mass LCD manufacturing. Its modular design allows for tailored solutions—including Z-axis lift modules for repair tool positioning and Theta axis rotation (±0.005° accuracy) for panel alignment—making it the ideal motion core for 10.5G LCD panel makers seeking to enhance quality control and reduce production costs.

Core Advantages

1. Dual-Drive Architecture for 10.5G Large-Size Stability

Equipped with symmetric dual linear motor drives on X/Y axes, the platform eliminates motion skew and torque deformation common in single-drive large-size motion systems. This ensures uniform speed and positioning across the entire 10.5G LCD detection and repair with flatness control ≤5μm/m—critical for consistent defect detection and pixel repair across oversized display substrates.

2. Micron-Level Precision for LCD Inspection/Repair

Integrated high-resolution linear encoders (0.1μm resolution) and real-time position compensation algorithms deliver ±2μm repeat positioning accuracy and ±5μm absolute accuracy for X/Y axes. This enables precise targeting of sub-pixel defects (≤5μm size) in 10.5G LCD detection and repair, reducing false detection rates and ensuring reliable pixel repair (dead pixel, bright spot, line defect correction) with zero damage to adjacent pixels.

3. Heavy-Duty & High-Speed Performance

Engineered to handle heavy loads (≤500kg) including 10.5G LCD detection and repair tooling, the platform achieves a maximum movement speed of 1.2m/s and acceleration of 0.8G—balancing high throughput (up to 60 panels per hour) with the stability required for precision repair work. The air-bearing guideway design eliminates mechanical friction, ensuring smooth motion and extending service life (MTBF ≥25,000 hours).

4. Thermally Stable & Anti-Vibration Design

Constructed with a natural granite base (thermal expansion coefficient ≤0.5×10⁻⁶/℃) and active vibration isolation system, the platform minimizes positional drift caused by temperature fluctuations (≤0.3μm/℃) and external factory vibrations. This stability ensures consistent inspection/repair quality across extended production runs, a critical requirement for high-yield 10.5G LCD manufacturing.

5. Seamless Integration with LCD Production Systems

Compatible with industry-standard communication protocols (EtherCAT, PROFINET, Modbus TCP) and LCD factory MES systems, the platform integrates seamlessly with AOI equipment, laser repair tools, and automated material handling systems (AMHS). Suzhou Deoute provides full customization of control interfaces and motion profiles to match existing 10.5G LCD production line workflows, reducing integration time and downtime.

6. Cleanroom & Maintenance-Friendly Design

Designed for Class 1000 LCD cleanroom operation, the platform features sealed linear motor enclosures and HEPA-filtered air circulation to prevent particle generation (≤0.1μm particle emission). The lubrication-free air-bearing components and modular structure reduce maintenance requirements, with quick-change parts available for on-site servicing—minimizing production downtime for 24/7 LCD manufacturing lines.

Technical Specifications

Application Scenarios

Engineered for 10.5G LCD detection and repair manufacturing, our dual-drive motion platform is widely used in the following high-precision processes:

● 10.5G LCD Optical Inspection: Automated optical inspection (AOI) of pixel defects, polarizer alignment, and glass substrate flatness for large-size TV panels

● LCD Pixel Repair: Laser repair of dead pixels, bright spots, and line defects in 10.5G LCD panels (compatible with COG/FOG bonding correction)

● Panel Edge Trimming: Precision trimming of excess glass/substrate material for 10.5G LCD panels to meet final size specifications

● Backlight Module Alignment: High-precision positioning of backlight units (BLU) and LED arrays for large-size LCD panel assembly

● Quality Control Verification: Post-repair inspection and validation of 10.5G LCD panels to ensure compliance with industry quality standards

About Deaote

Suzhou Deaote Precision Mould Co., Ltd. is a leading high-tech enterprise specializing in R&D, manufacturing, and sales of large-scale precision motion platforms, custom moulds, and display manufacturing components. With over 15 years of expertise in precision manufacturing and large-size motion control, we serve global customers in the LCD/OLED, semiconductor, and industrial automation sectors across Asia, Europe, and North America.

Our ultra-large dual-drive motion platform leverages our core competencies in heavy-duty motion system design and precision structural engineering to address the unique challenges of 10.5G LCD manufacturing. We provide end-to-end solutions—from custom platform design and prototyping to on-site installation, calibration, and lifetime technical support—ensuring our products meet the strictest industry standards for precision and reliability in large-size display production.

Committed to "Precision Drives Progress, Innovation Creates Value", Deaote is ISO 9001:2015 certified and invests 15% of annual revenue in R&D to develop next-generation motion solutions for the display industry. Our global service network ensures fast response times (≤48 hours) and local technical support for our international LCD manufacturing customers.
