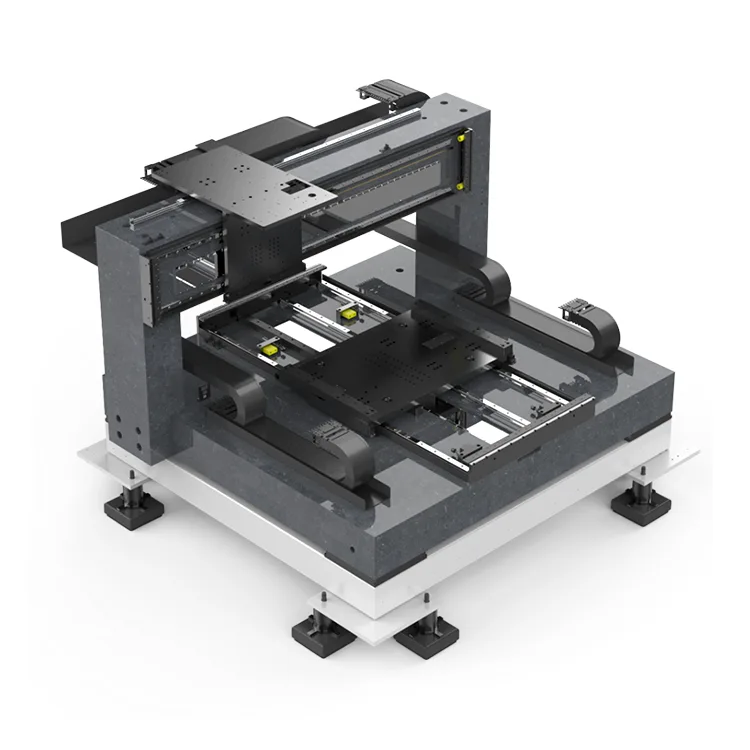

LCD Laser Cutting

Integrating high-precision linear drive, high-rigidity guidance, full closed-loop feedback, and adaptive adsorption positioning systems, our platform supports both full-cut and half-cut processes for LCD products of varying sizes. It is widely used in LCD Laser Cutting, special-shaped cutting, and frame trimming, serving as a core component for automated and high-precision LCD display production lines. Our solution helps manufacturers improve yield rates, reduce labor costs, and achieve large-scale mass production.

Featuring adaptive scaling design and micron-level positioning technology, the platform eliminates compatibility issues and positioning deviations common in traditional systems. Optimized for harsh LCD Laser Cutting environments (from hardware structure to control algorithms), it balances high-speed motion stability with long-term operational reliability, demonstrating Deaote's technical expertise in precision motion systems.

Core Advantages

1. Micron-Level Positioning Precision

Equipped with XY-axis precision linear motor direct drive and high-resolution grating ruler closed-loop feedback (0.1μm resolution), the platform delivers ±1μm repeat positioning accuracy and ±2μm positioning accuracy. This eliminates transmission gap-induced deviations, ensuring laser cutting trajectories are fully controllable (kerf width: 0.07~0.20mm) and eliminating chipping, burrs, and dimensional errors – significantly boosting product yield for precision LCD Laser Cutting.

2. High-Rigidity & Stable Load Design

Constructed with a natural granite base (ultra-low thermal expansion coefficient and superior vibration absorption), the platform minimizes inertial jitter caused by temperature fluctuations and high-speed motion. Paired with heavy-duty double-slider linear guides, it handles high-frequency, high-acceleration motion (max acceleration: 1G; max speed: 1.5m/s) with short stabilization time, preventing laser focus shift and ensuring smooth, consistent cutting edges.

3. Adaptive Multi-Size Compatibility

The adjustable structural design accommodates LCD panels of all sizes – from small wearable device screens to large LCD TV panels – without the need for specialized tooling changes. Compatible with LCD backlight modules, conductive films, and CPI films, it reduces production switching costs and enhances production line flexibility.

4. Customizable Solutions

Leveraging Deaote's precision mould manufacturing expertise, we customize platform stroke, drive mode, adsorption systems, and control interfaces to match your specific equipment parameters (stroke, load, cutting precision, process requirements). Supporting X-Y-θ 4-axis coordinated control, it enables complex trajectory cutting and second-level angle adjustment for full-cut/half-cut processes – meeting diverse LCD production needs.

5. Low Maintenance & Operational Efficiency

Non-contact direct drive technology eliminates mechanical wear, reducing lubrication and component replacement needs (extended maintenance cycles). An integrated high-efficiency air cooling system prevents precision drift from motor heating, while IP64 sealed protection safeguards against dust and cutting debris – ideal for clean LCD production environments and long-term cost savings.

Technical Specifications

Application Scenarios

Engineered specifically for LCD Laser Cutting, our platform is widely used in precision cutting of LCD-related products, including:

● LCD Panels: Shape cutting, special-shaped cutting, and frame trimming for mobile phones, computers, TVs, and tablets

● LCD Backlight Modules: Precision cutting of backlight modules and light guide plates (ensuring uniform backlighting)

● Touch Screen Components: Laser cutting of CPI films, conductive films, acrylic/PC substrates (flexible/rigid screen production)

● Other LCD Components: Full/half-cut processing of e-paper, SMT cover plates, and auxiliary LCD parts

About Deaote

Suzhou Deaote Precision Mould Co., Ltd. is a high-tech enterprise specializing in R&D, production, and sales of precision moulds, high-precision motion components, and integrated motion platforms. With years of expertise in precision manufacturing, we boast an experienced R&D team and a complete precision processing, testing, and assembly system.

Building on our core precision mould manufacturing technology, we expand into precision motion platforms – focusing on high-end manufacturing sectors including LCD, semiconductors, and 3C electronics. We are committed to delivering customized, high-precision, and reliable motion solutions to global customers.

Guided by "Precision, Efficiency, Innovation, Win-Win", Deaote maintains strict quality control throughout the production process (raw material procurement to finished product testing), ensuring our products meet the rigorous demands of modern manufacturing – helping clients enhance core competitiveness and achieve high-quality development.
